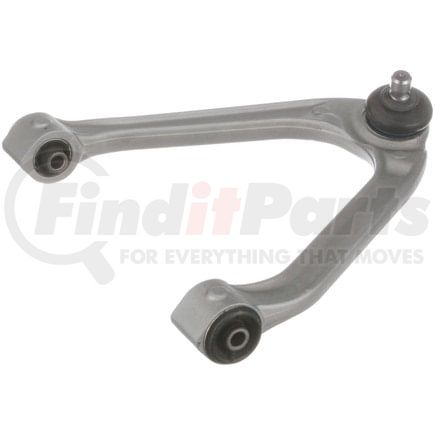

Delphi TC7386 - Control Arm and Ball Joint Assembly
$11599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Bushing Color | Black |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 314.50 MM |
| Control Arm Color | Gray |
| Control Arm Maximum Length | 245.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| 9532 | 264.20 MM |
| Bushing Inside Diameter | 10.20 MM |
| Bushing Length | 50.00 MM |
| Control Arm Maximum Width | 12.382 IN |
| Control Arm Maximum Length | 9.646 IN |
| 9532 | 10.402 IN |
| Bushing Inside Diameter | 0.402 IN |
| Bushing Length | 1.969 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604354445 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- INFINITI QX70 (2014-2017)
- INFINITI FX37 (2013)
- INFINITI FX50 (2009-2013)
- INFINITI FX35 (2009-2012)
