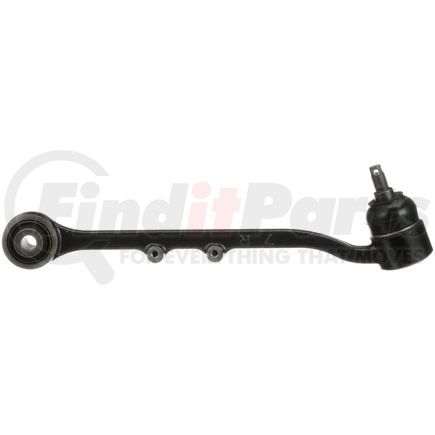

Delphi TC7143 - Control Arm and Ball Joint Assembly
$23999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Lower Forward |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Locking Nut Included | Yes |
| Greasable | No |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 62.50 MM |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Bushing Inside Diameter | 12.20 MM |
| Bushing Length | 44.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 2.461 IN |
| Thread Diameter | 0.472 IN |
| Bushing Inside Diameter | 0.480 IN |
| Bushing Length | 1.732 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604342800 |
| VMRS Code | 016008142 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Acura RL (1996-2004)
