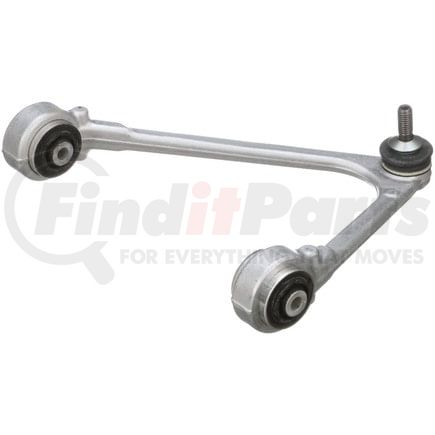

Delphi TC6644 - Suspension Control Arm and Ball Joint Assembly
$14999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Suspension Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Left Upper |
| Item Grade | Standard Replacement |
| Bushing Color | Black |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Rubber |
| 9532 | 319.00 MM |
| Bushing Inside Diameter | 10.20 MM |
| Bushing Length | 49.00 MM |
| Thread Direction | Clockwise (Right) |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Greasable | No |
| Control Arm Color | Gray |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| 9532 | 12.559 IN |
| Bushing Inside Diameter | 0.402 IN |
| Bushing Length | 1.929 IN |
Additional Information
| Warranty Special | Limited Lifetime |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604340059 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Jaguar XJR575 (2018-2019)
- Jaguar XJR (2014-2017)
- Jaguar XJ (2010-2019)
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more infor (Read more)
