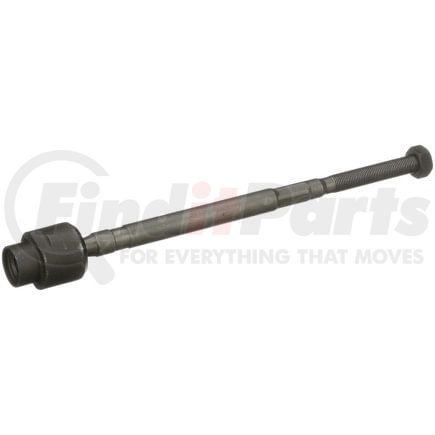

Name: Delphi TA5746 Tie Rod End
SKU: ta5746
Price: 31.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Length	127.00 MM
Color	Black
Shank Length	26.10 MM
End 1 Gender	Male
End 2 Gender	Male
Stud Length	26.10 MM
Finish	Painted
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	25.40 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	No
Greasable	Yes
Boot Color	Black
Cone Outside Diameter	26.10 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
Length Stud Center to End	81.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	16
End 1 Threads Per Inch	16
End 1 Thread Diameter	19.10 MM
Shank Length	1.028 IN
Stud Length	1.028 IN
End 2 Thread Diameter	1.000 IN
662	1.028 IN
Length Stud Center to End	3.189 IN
End 1 Thread Diameter	0.752 IN

Additional Information

Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708947550
Country of Origin (Primary)	TR
UPC	00689604332542
VMRS Code	015004070
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Chevrolet Metro (1998-2001)
Suzuki Swift (1998-2001)
