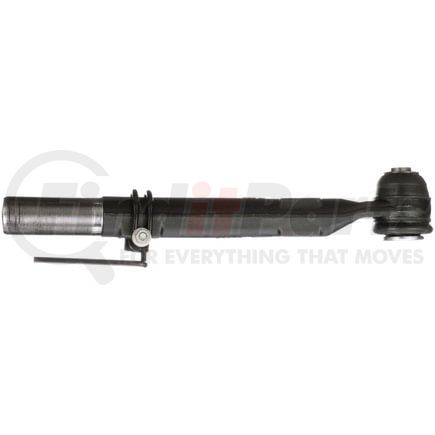

Delphi TA5728 - Tie Rod End
$10549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 100.0 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.563 IN |
| End 2 Thread Diameter | 38.45 MM |
| Height | 72.0 MM |
| Housing Material | Steel |
| 36 | 1.516 IN |
| Tube Diameter | 38.5 MM |
| Adjustable | No |
| Greasable | No |
| Weight | 9.36 lb |
| Cone Outside Diameter | 23.3 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Length Stud Center to End | 15.445 IN |
| Length Stud Center to End | 392.3 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 16 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604334188 |
| VMRS Code | 015013004 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Ford F-450 Super Duty (2011-2019)
- Ford F-550 Super Duty (2011-2018)
- Ford F-250 Super Duty (2011-2016)
- Ford F-350 Super Duty (2008-2016)
