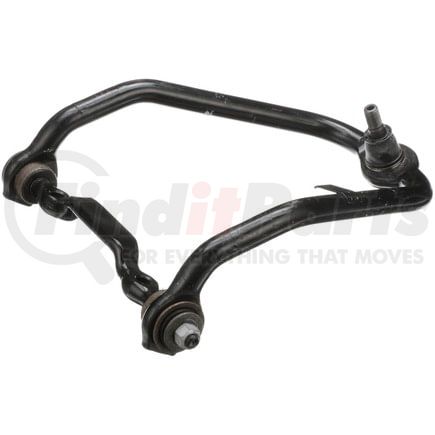

Delphi TC6276 - Control Arm and Ball Joint Assembly
$11449
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right, Rear Right Upper. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 13.189 IN |
| Control Arm Maximum Width | 335.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.110 IN |
| Ball Joint Stud Length | 79.00 MM |
| Control Arm Maximum Length | 13.602 IN |
| Control Arm Maximum Length | 345.50 MM |
| Mounting Hole Diameter | 0.531 IN |
| Mounting Hole Diameter | 13.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| UPC | 00689604328590 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Dodge Stratus (2001-2004)
- Chrysler Sebring (2001-2003)
