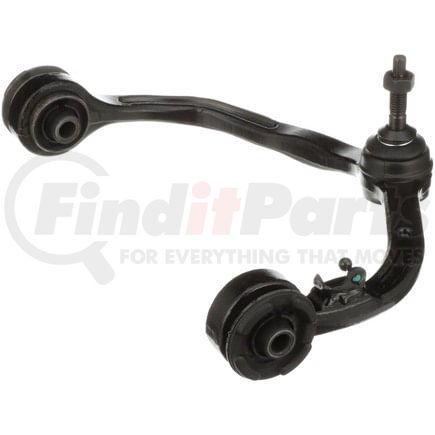

(888) 312-8812 Login SignupDELPHI TC6247 Control Arm and Ball Joint Assembly
Tap to view 13 more
$6699
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
DELPHI TC6247 Part Description
DELPHI TC6247 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 394.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 60.00 MM |
| Control Arm Maximum Length | 193.50 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 14.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 15.512 IN |
| Ball Joint Stud Length | 2.362 IN |
| Control Arm Maximum Length | 7.618 IN |
| Mounting Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | US |
| UPC | 00689604335178 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC6247 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | RK80716, RK80717 |
| Ford | 4L1Z 3085-CA |
| Dorman | 521-129, CB85037, CB85037PR, CB85047, CB85047PR |
| N/A | GS40110, CB85047PR, JTC2137, CMK80717, GK80717, CB85047 |
DELPHI TC6247 Fits Vehicles
- Lincoln Navigator (2005-2006)
- Ford Expedition (2005-2006)
DELPHI TC6247 Customer Reviews
No reviews yet
Be the first to review this product!
