ICON K53001 Part Description
Manufacturer
Product Description

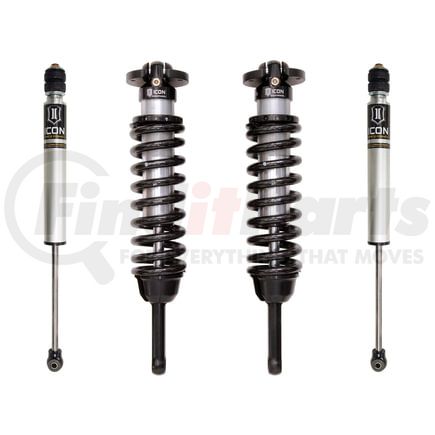

05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 1 SUSPENSION SYSTEM
Features & Benefits
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- ICON engineered coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear shocks with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
OEM Wheels & Tires Fitment: Yes
LEVELING KIT SUSPENSION
ICON K53001 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Add-on Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Damping | No |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| Coil Quantity Front | 2 |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 650 PPI |
| Title | ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 1 Suspension System |
Additional Information
| Warranty Special | 1 Year-Shocks; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103416373 |
ICON K53001 Fits Vehicles
- Toyota Tacoma (2005-2023)
