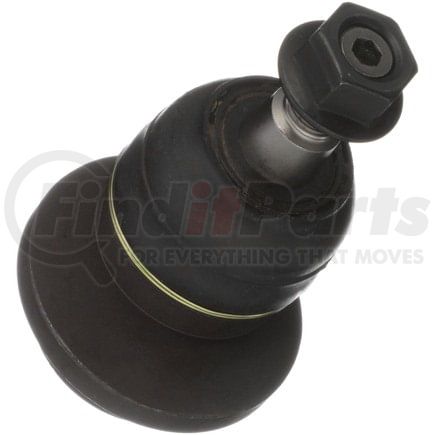

Delphi TC7657 - Ball Joint
$7249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.580 IN |
| Maximum Outside Diameter | 65.53 MM |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | No |
| Washers Included | Yes |
| Height | 3.815 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | No |
| 4966 | 1.034 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.787 IN |
| Stud Tapered End 2 Diameter | 19.9898 MM |
| 9213 | 0.66 IN |
| Stud Tapered End 1 Diameter | 16.764 MM |
| Stud Thread Diameter | 0.55 IN |
| Height | 96.90 MM |
| Stud Thread Length | 26.26 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604341476 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Dodge Durango (2011-2015)
- Jeep Grand Cherokee (2011-2019)
