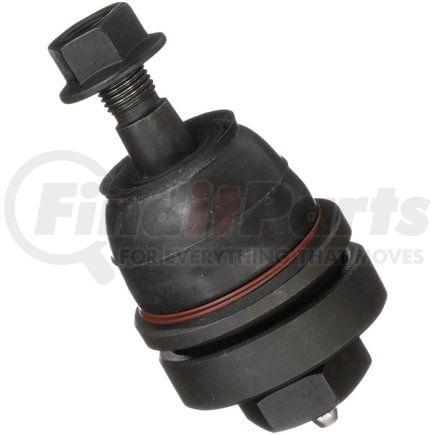

Delphi TC6736 - Ball Joint
$11699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.000 IN |
| Maximum Outside Diameter | 50.80 MM |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | No |
| Washers Included | Yes |
| Height | 4.683 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.6 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Thread Diameter | 0.47 IN |
| Height | 118.95 MM |
| Stud Thread Length | 15.24 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00689604341445 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Lincoln MKZ (2007-2012)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2011)
- Ford Fusion (2006-2012)
- Mazda 6 (2003-2008)
