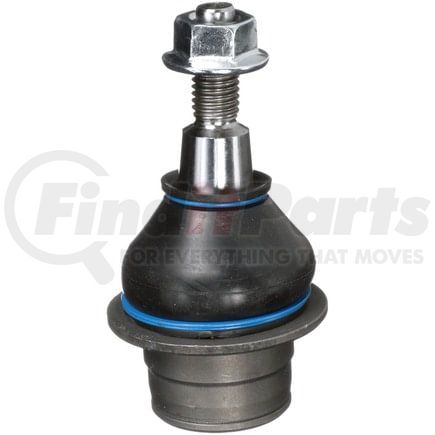

(888) 312-8812 Login SignupDELPHI TC6724 Ball Joint
Tap to view 9 more
$5249
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC6724 Part Description
DELPHI TC6724 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.559 IN |
| Maximum Outside Diameter | 65.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 65 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | No |
| Height | 4.646 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.142 IN |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 23.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.756 IN |
| Stud Tapered End 2 Diameter | 19.2 MM |
| Stud Tapered End 1 Diameter | 0.941 IN |
| Stud Tapered End 1 Diameter | 23.9 MM |
| Stud Thread Pitch | 2 MM |
| Length | 118.00 MM |
| Length | 4.650 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 118.01 MM |
| Stud Thread Length | 29.01 MM |
| Mounting Bolt Shank Diameter | 0.310 IN |
| Mounting Bolt Thread Length | 0.910 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604327753 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC6724 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | FL3Z 3050-A, FL3Z 3050-B, MCF2363 |
| MOOG Chassis Products | K500318 |
| TRW | JBJ1170 |
| Dorman | BJ87005, BJ87005PR, BJ87005XL |
| N/A | FL3Z3050C, MS40531, BJ87005, TXMS40531, BJ87005XL |
DELPHI TC6724 Fits Vehicles
- Lincoln Navigator (2018-2023)
- Ford Expedition (2018-2023)
- Ford GT (2017-2022)
- Ford F-150 (2015-2020)
