DELPHI part description

Product Description

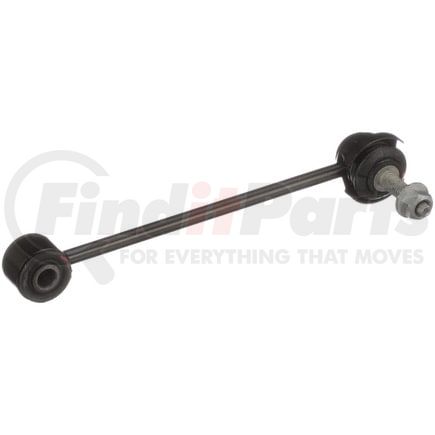

Suspension Stabilizer Bar Link

Product Attributes

Position(s) Rear
Item Grade Standard Replacement
Material Steel
Bushing Outside Diameter 35.0 MM
Bushing Color Black
Length 239.5 MM
End 1 Type Male
End 2 Type Female
Bushings Included Yes
Dust Boot Included Yes
Bolt Thread Size M12 x 1.25
Width 35.0 MM
Washers Included Yes
Height 80.0 MM
Grade Type Regular
Bolts Included Yes
Housing Material Steel
Greasable No
4504 12.0 MM
Bearing Material Steel
Bushing Material Rubber
Bolt Length 78.0 MM
Distance Between Mounting Holes 239.5 MM
Locking Nuts Included Yes

Additional Information

Harmonized Tariff Code (Schedule B) 8708806590
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708807000
Warranty Special Limited Lifetime
Warranty Special UOM LF
UPC 00689604350362
VMRS Code 016007018
UNSPSC 25172001

Part Interchanges

Fits Vehicles

  • Ram 2500 (2014-2021)
