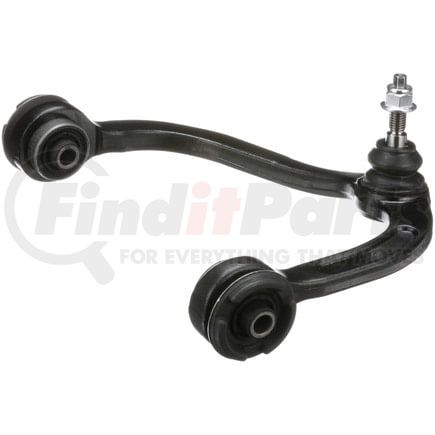

Delphi TC6369 - Control Arm and Ball Joint Assembly
$6499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 10.433 IN |
| Control Arm Maximum Width | 265.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 3.819 IN |
| Ball Joint Stud Length | 97.00 MM |
| Control Arm Maximum Length | 13.976 IN |
| Control Arm Maximum Length | 355.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604325858 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
- MOOG Chassis Products CK80306
- MOOG Chassis Products RK80306
- Ford 4L3Z 3085-AA
- Ford 6L3Z 3085-AL
- Ford MCSOE29
- MAS Industries CB85187
- MAS Industries CB85187PR
- MAS Industries CB85217
- MAS Industries CB85217PR
- Dorman 520-285
- MOOG Chassis Products K80417
- TRW JTC1580
- BL3Z 3085-A
- 7L1Z 3085-A
- GK80306
- CTXK80306
- CMK80306
- JTC2160
- EL3Z 3085-B
Fits Vehicles
- Lincoln Navigator (2007-2017)
- Ford Expedition (2007-2017)
- Lincoln Mark LT (2006-2008)
- Ford F-150 (2004-2014)
