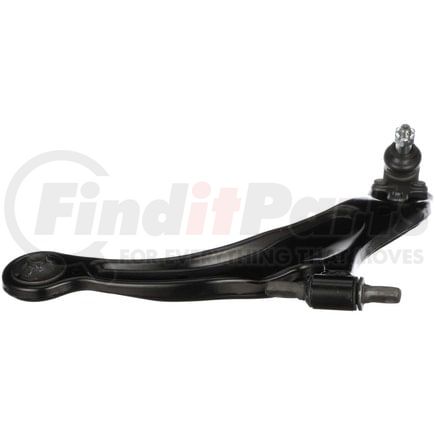

Delphi TC6368 - Control Arm and Ball Joint Assembly
$7299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.213 IN |
| Control Arm Maximum Width | 107.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.906 IN |
| Ball Joint Stud Length | 23.00 MM |
| Control Arm Maximum Length | 17.878 IN |
| Control Arm Maximum Length | 454.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604321911 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 102-6237
- MOOG Chassis Products RK620579
- Toyota 48069-07030
- Toyota 48069-08010
- Toyota 48069-08011
- Toyota 48069-08020
- MAS Industries CA74543
- MAS Industries CA74543PR
- Dorman 520-455
- Dorman 521-729
- MOOG Chassis Products 102-6237
- Mevotech CMS86169
- TRW JTC2503
- 43330-39435
- 43330-39285
- GS86147
- 524-137
- CMS86147
Fits Vehicles
- Toyota Solara (1999-2003)
- Toyota Sienna (1998-2003)
- Toyota Avalon (1998-2004)
