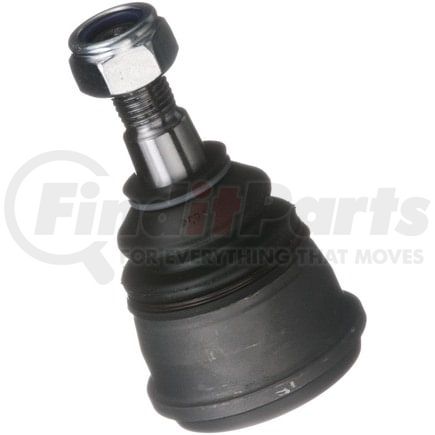

(888) 312-8812 Login SignupDELPHI TC5874 Ball Joint
Tap to view 3 more
$1799
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5874 Part Description
DELPHI TC5874 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.126 IN |
| Maximum Outside Diameter | 54.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 54 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.740 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.925 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.1 IN |
| Stud Tapered End 2 Diameter | 0.638 IN |
| Stud Tapered End 2 Diameter | 16.2 MM |
| Stud Tapered End 1 Diameter | 0.728 IN |
| Stud Tapered End 1 Diameter | 18.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 95.00 MM |
| Length | 3.740 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 95.00 MM |
| Stud Thread Length | 23.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604316115 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5874 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-0909 |
| MOOG Chassis Products | K9071 |
| Mercedes-Benz | 112-333-1127, 115-333-0627, 115-333-1027, 115-333-1127 |
| TRW | JBJ715 |
| N/A | GK80301 |
DELPHI TC5874 Fits Vehicles
- Mercedes-Benz 250 (1968-1972)
- Mercedes-Benz 350SL (1972)
- Mercedes-Benz 280SEL (1973)
- Mercedes-Benz 250C (1969-1972)
- Mercedes-Benz 220D (1968-1973)
- Mercedes-Benz 220 (1968-1973)
- Mercedes-Benz 450SLC (1973-1980)
- Mercedes-Benz 450SL (1973-1980)
- Mercedes-Benz 380SLC (1981)
- Mercedes-Benz 380SL (1981-1985)
- Mercedes-Benz 300D (1975-1976)
- Mercedes-Benz 280C (1973-1976)
- Mercedes-Benz 240D (1974-1976)
- Mercedes-Benz 230 (1974-1976)
- Mercedes-Benz 280 (1973-1976)
