DELPHI part description
Product Description

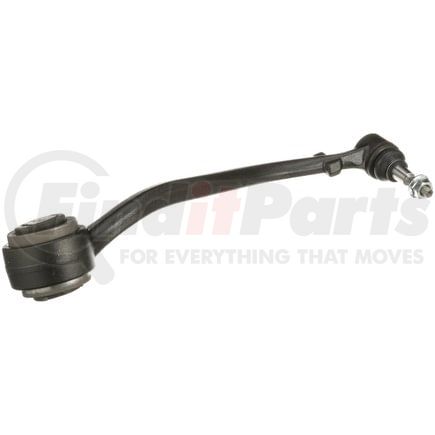

Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.016 IN |
| Control Arm Maximum Width | 102.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 4.449 IN |
| Ball Joint Stud Length | 113.00 MM |
| Control Arm Maximum Length | 20.315 IN |
| Control Arm Maximum Length | 516.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 14.20 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604315729 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Chevrolet Camaro (2010-2015)
