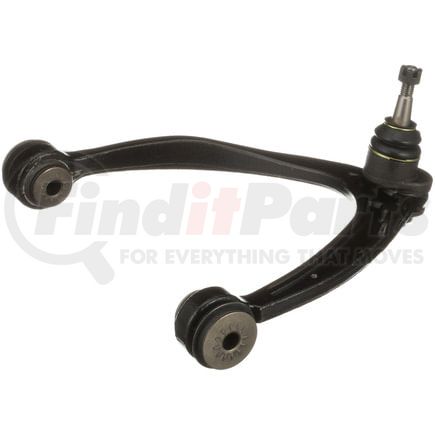

Delphi TC5817 - Control Arm and Ball Joint Assembly
$9049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 3.425 IN |
| Ball Joint Stud Length | 87.00 MM |
| Control Arm Maximum Length | 18.189 IN |
| Control Arm Maximum Length | 462.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 14.20 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Thread Diameter | 0.472 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604315675 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- MOOG Chassis Products CK620292
- MOOG Chassis Products K5333
- MOOG Chassis Products RK620292
- General Motors 25699468
- General Motors 25766510
- MAS Industries CB91054
- MAS Industries CB91054PR
- Dorman 520-170
- MOOG Chassis Products CK620291
- MOOG Chassis Products RK620291
- General Motors 25699467
- General Motors 25766511
- MAS Industries CB91053
- MAS Industries CB91053PR
- TRW JTC2396
- Dorman 520-169
- CMS50114
- GS50114
- JTC2395
Fits Vehicles
- Pontiac Bonneville (2000-2005)
- Oldsmobile Aurora (1998-1999, 2001-2003)
- Cadillac Seville (1998-2004)
- Cadillac DeVille (2000-2005)
- Buick Riviera (1998-1999)
- Buick Park Avenue (1998-2005)
- Buick LeSabre (2000-2005)
