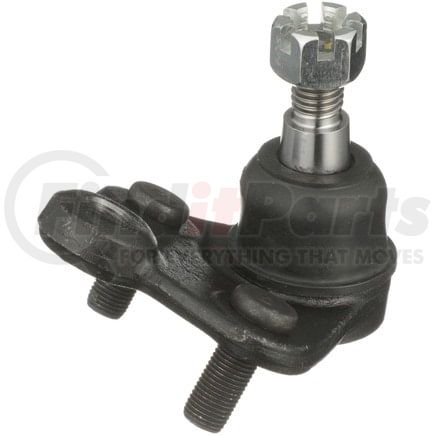

Delphi TC3809 - Ball Joint
$2899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Left Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 37.50 MM |
| Washers Included | No |
| Height | 3.386 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| 4966 | 0.827 IN |
| Stud Thread Length | 21 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 60.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 13.00 MM |
| Mounting Bolt Head Diameter | 21.90 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.789 IN |
| Stud Tapered End 2 Diameter | 20.05 MM |
| 9213 | 0.689 IN |
| Stud Tapered End 1 Diameter | 17.5 MM |
| Stud Thread Pitch | 2 MM |
| Length | 105.00 MM |
| Length | 4.130 IN |
| Stud Thread Diameter | 0.55 IN |
| 3068 | 1.480 IN |
| Height | 86.00 MM |
| 9202 | 0.510 IN |
| 9203 | 0.860 IN |
| 9207 | 1.180 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604346877 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Honda CR-V (2010-2011)
