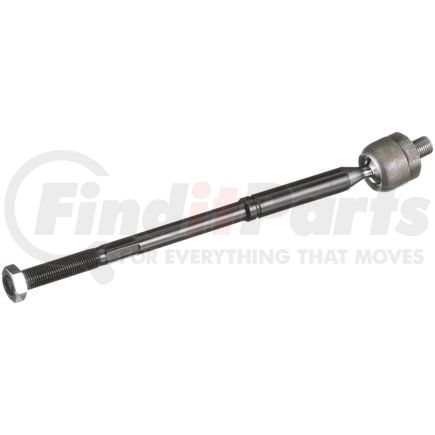

Delphi TA6336 - Tie Rod End
$2099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 321.0 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 36.0 MM |
| Type | Straight |
| End 2 Thread Diameter | 14.0 MM |
| Height | 36.0 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | No |
| Weight | 1.27 lb |
| Bearing Material | Polyoxymethilen (POM) |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 11.13 IN |
| Length Stud Center to End | 282.7 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604331859 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Mazda CX-5 (2013-2016)
