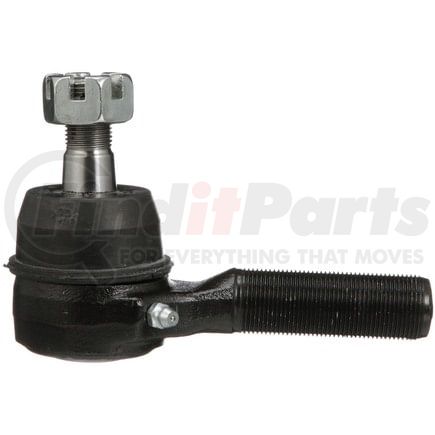

Delphi TA5596 - Tie Rod End
$4549
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left |
| Item Grade | Standard Replacement |
| Length | 139.0 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 52.0 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.625 IN |
| Height | 102.0 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | Yes |
| Weight | 1.74 lb |
| Bearing Material | Steel |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Standard |
| Stud Type | Threaded |
| Length Stud Center to End | 113.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.875 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604321515 |
| VMRS Code | 015013005 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Dodge Truck (1957-1960)
