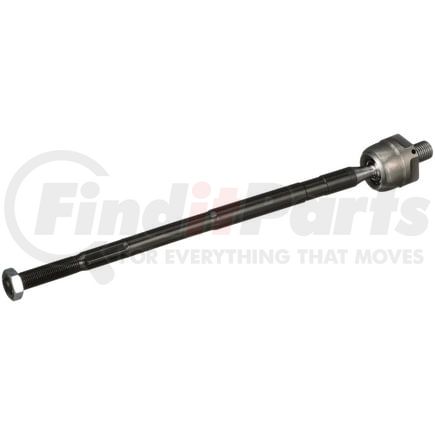

Name: Delphi TA5568 Tie Rod End
SKU: ta5568
Price: 34.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	No
Width	35.5 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	12.00 MM
Height	35.50 MM
Housing Material	Steel
36	0.571 IN
Tube Diameter	14.50 MM
Adjustable	Yes
Greasable	No
Weight	0.99 lb
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Thread Pitch	1.25 MM
Length Stud Center to End	11.181 IN
Length Stud Center to End	284.00 MM
Tie Rod Material	Steel
End 1 Thread Diameter	14.00 MM
Grade Type	Standard
Grade	Premium
End 2 Thread Diameter	0.472 IN
End 1 Thread Diameter	0.551 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708947550
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604315873
VMRS Code	015004070
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Suzuki Aerio (2002-2007)
