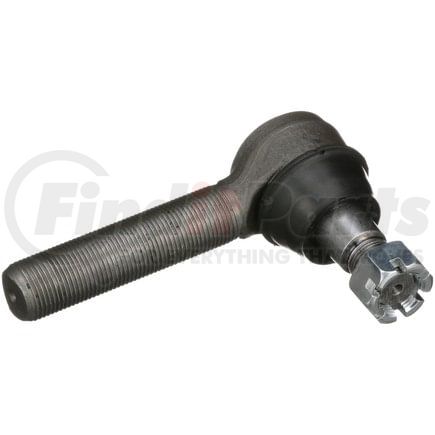

(888) 312-8812 Login SignupDELPHI TA5548 Tie Rod End
Tap to view 5 more
$6499
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
DELPHI TA5548 Part Description
DELPHI TA5548 Specifications
Product Attributes
| Position(s) | Right, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 185.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 57 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.117 IN |
| End 2 Thread Diameter | 28.38 MM |
| Height | 121.50 MM |
| Housing Material | Steel |
| Tube Diameter | 1.125 IN |
| Tube Diameter | 28.38 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 3.08 lb |
| Cone Outside Diameter | 27.98 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 5.984 IN |
| Length - Stud Center to End | 152.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 27.98 MM |
| Stud Length | 27.98 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 1.102 IN |
| Stud Length | 1.102 IN |
| Cone Outside Diameter | 1.102 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604314968 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5548 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES3476 |
| Ford | 817019 |
| Freightliner | 64000002, 817019 |
| TRW | JTE1802 |
DELPHI TA5548 Fits Vehicles
- Kenworth K100E (1996-1998)
- Kenworth C500 (1995-1998)
- Peterbilt 379 (1996-1998)
- Autocar LLC. Xpert (2012, 2014-2016)
- Peterbilt 378 (1996-1998)
- Kenworth W900 (1996-1998)
- Freightliner Classic XL (2001-2009)
- Freightliner Century Class (1996-2010)
- International 7100 (1990-1995)
- Workhorse R26 (2007-2009)
