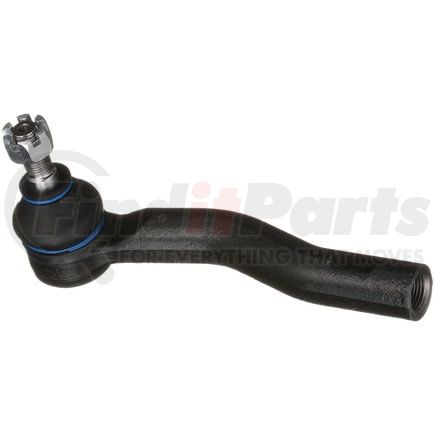

Name: Delphi TA3275 Tie Rod End
SKU: ta3275
Price: 32.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Length	185.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	46 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	76.00 MM
Housing Material	Steel
36	0.945 IN
Tube Diameter	24.00 MM
Adjustable	No
Greasable	No
Weight	1.64 lb
Cone Outside Diameter	16.10 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	6.496 IN
Length Stud Center to End	165.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	16.10 MM
Stud Length	16.10 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.634 IN
Stud Length	0.634 IN
662	0.634 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708947550
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604341698
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Lexus UX250h (2019-2022)
Lexus UX200 (2019-2022)
Toyota Prius AWD-e (2019-2022)
Toyota Corolla (2019-2022)
Toyota C-HR (2018-2022)
Toyota Prius Prime (2017-2022)
Toyota Prius (2016-2022)
