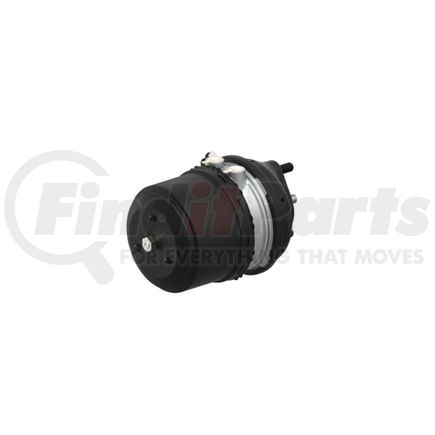

(888) 312-8812 Login SignupWABCO 9254920520 Air Brake Spring Brake Actuator - Tristop Series, Cam, 30/30
Tap to view 3 more
$1,16599
14 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9254920520 Part Description
WABCO 9254920520 Specifications
Product Attributes
| Output Force | 12000 N |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Return-Spring Force | 225 N |
| Max. operating pressure | 10.2/8.5 bar |
| Type | 30/30 |
| Wrench Size | 24.0 mm |
| Bolt Lengths | 33.5 mm |
| Thread Length | 40 mm |
| Temperature Range | -40°C to +80°C |
| Release Pressure | 5.3 bar |
| Calculated Volume (dm³) | 23.805 |
| Stroke | 65/65 mm |
| Weight | 23.5894 |
| Type Of Operation | Cam |
| Push-Rod Length | 40 mm |
| Cooling | Air |
| Size | 230 x 230 x 450 |
| Port thread 11 | M16 x 1.5 JED - 152 |
| Total Length | 290.0 mm |
| Bolt Threads | M16 x 1.5 |
| Nominal Diameter | 8.5 mm |
| Push-rod thread | M16 x 1.5 |
| Version | Without boot |
| Yoke | Without |
WABCO 9254920520 Cross References
We have 1 alternatives for the 9254920520 by WABCO:
WABCO 9254920520 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9254920520 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
