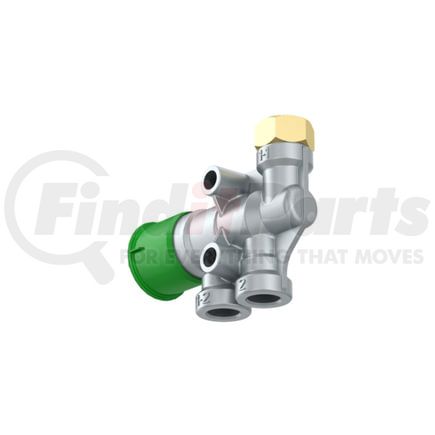

(888) 312-8812 Login SignupWABCO 9630060050 Air Brake Quick Release Valve
Tap to view 3 more
MSRP: $1,015.88
$78199
Save $233.89
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9630060050 Part Description
WABCO 9630060050 Specifications
Product Attributes
| Mounting | 2x Ø 8.5 mm |
| Nominal Diameter | 6.0 mm |
| Max. operating pressure | 8.5 bar |
| Port Thread 1-2 | M16 x 1.5 |
| Max. operating pressure | 123.28 psi |
| Port thread 3 | Flap Exhaust |
| Color | Knob - Green |
| Distance Between Holes | 37 mm |
| Type | Release valve |
| Weight | 0.355 |
| Temperature Range | -40°C to +80°C |
| Port threads | M16 x 1.5 |
| Calculated Volume (dm³) | 0.2814 |
| Port thread 2 | M16 x 1.5 |
| Size | 88.5 x 79.5 x 40 |
| Actuation | Yellow |
WABCO 9630060050 Cross References
| Brand | Part Number |
|---|---|
| MERITOR | S9630060050 |
WABCO 9630060050 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9630060050 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
