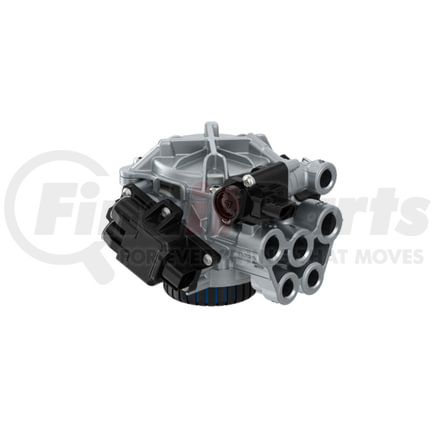

WABCO 9760001030 - ABS Modulator Relay Valve -12V, 4S/4M
$54149
MSRP: $1,019.80
Save: $478.31
Limited Availability
. Learn more
WABCO part description
Product Attributes
| Electrical connection | TYCO HDSCS 3x2.8 Coding A+B, TYCO HDSCS 2x1.5 Coding A |
| Max. operating pressure | 11.0 bar |
| Part Type | Premium original quality |
| Port thread 1 | 1/2 - 14 Dry Seal NPTF |
| Port thread 21 | 1/2 - 14 Dry Seal NPTF |
| Port thread 22 | 1/2 - 14 Dry Seal NPTF |
| Port thread 25 | 3/8 - 18 Dry Seal NPTF |
| Port thread 26 | Closed |
| Port thread 31 | Silencer |
| Port thread 4 | 3/8 - 18 Dry Seal NPTF |
| Product Category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 2220 mA |
| Response Pressure | 0.38 bar |
| System | 4S/4M |
| Technical specification | OE specification |
| Temperature Range | -40°C to +80°C |
| Voltage | 12 V |
WABCO 9760001030 Cross Reference
We have 2 alternatives for the 9760001030 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
