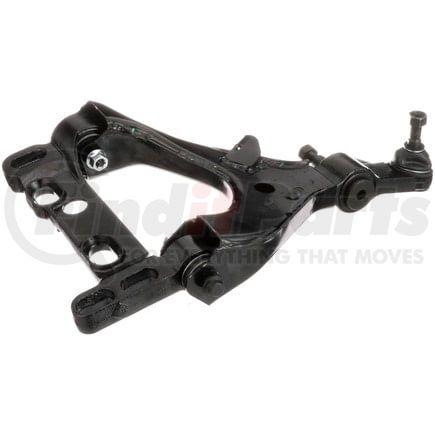

Delphi TC6381 - Control Arm and Ball Joint Assembly
$17449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.882 IN |
| Control Arm Maximum Width | 124.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 3.701 IN |
| Ball Joint Stud Length | 94.00 MM |
| Control Arm Maximum Length | 22.441 IN |
| Control Arm Maximum Length | 570.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 27.15 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.630 IN |
| Thread Diameter | 0.630 IN |
| Mounting Hole Diameter | 1.069 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604328408 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Chevrolet Trailblazer EXT (2004-2006)
- GMC Envoy XL (2004-2006)
- GMC Envoy XUV (2004-2005)
- Saab 9-7x (2005-2007)
- Isuzu Ascender (2004-2007)
- Oldsmobile Bravada (2004)
- GMC Envoy (2004-2007)
- Chevrolet Trailblazer (2004-2007)
- Buick Rainier (2004-2007)
