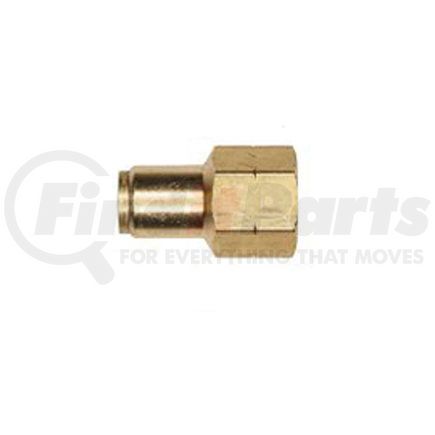

Haldex APX66F4X4 - Air Brake Air Line Connector Fitting - Female Connector, Tube Size 1/4, Pipe Thread 1/4
$949
MSRP: $14.53
Save: $5.04
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HALDEX part description
Product Description
H Temp Female Connector 1/4T 1/4F Sold in quantities of 10
Features & Benefits
- With a typical temperature range from -40° to 400°F
- Made compatible with SAE J844 air brake tubing
- With CA360 and CA377 brass construction for superior durability
- Lighter and stronger than competing units with extruded designs
- Built to offer years of reliable use
- Proudly made in the USA
Haldex Midland Brass H Temp Female Connector
The Haldex Midland brass H temp union connector is a crucial air brake system component specifically designed to connect the air lines. A part of Haldex’s comprehensive range of air brake air line connector fittings, this high temp air-push connect fitting with forged brass design is made to conform and meet FMVSS 571.10, SAE J1131, J2494 1, and J2494 3 air brake performance requirements.
Product Attributes
| Connector Gender | Female |
| Family | High Temperature |
| Freight Class | 70 |
| Hex Size | 3/4 in. |
| Length | 1.55 in. |
| Material | Brass |
| Pipe Diameter | 1/4 in. NPT |
| Tubing Inside Diameter | 1/4 in. |
| Type | Fixed Connector |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 7412200035 |
| Harmonized Tariff Code (HTS) | 7412200035 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653387246 |
| VMRS Code | 013010002 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
