SEALED POWER part description

Product Description

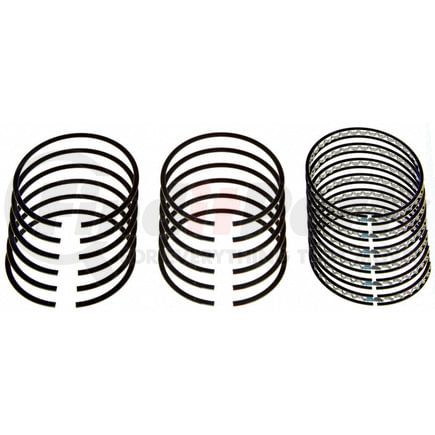

Engine Piston Ring Set

Features & Benefits

  • Chrome plated top ring facings for enhanced performance under demanding conditions
  • Second rings seat instantly, properly control inter-ring pressure to improve cylinder sealing, provide efficient piston-to-cylinder heat transfer and aid in effective oil control
  • Oil rings are unequalled at controlling oil; design keeps tension uniform while assuring a positive seal
  • In the box: compression rings, rails and oil spacer

Product Attributes

Oversized No
Cylinder Quantity 6
Bore Diameter 94.00 MM
Oil Ring Design 3 Piece Flex Vent
2nd Ring Face Design Reverse Torsional
Top Ring Face Design Barrel Face
2nd Ring Material Cast Iron
Top Ring Material Steel w/Chrome
Oil Ring Tension Low
Oil Ring Width 2.00 MM
2nd Ring Width 1.20 MM
Top Ring Width 1.20 MM
Top Ring Radial Wall Thickness 3.38 MM
File Fit No
Part Description Engine Piston Ring Set
Ring Set Groove Widths 1.2 x 1.2 x 2.0 MM
Grade Type Premium

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (Schedule B) 8409915085
Harmonized Tariff Code (HTS) 8409915085
UPC 00019826249142

Part Interchanges

Fits Vehicles

  • Toyota FJ Cruiser (2007-2012)
  • Toyota Tacoma (2005-2015)
  • Toyota Tundra (2005-2014)
  • Toyota 4Runner (2003-2009, 2014-2019)
