BENDIX part description

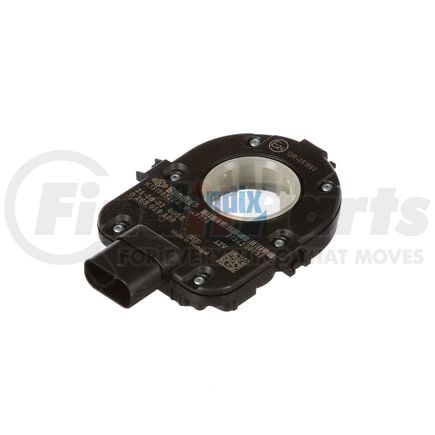

BENDIX® STEERING ANGLE SENSOR

Connector Type: Bosch 7-Pin Connector (Male)
Operating Voltage Range: 8 VDC - 16 VDC
Maximum Operating Temperature: 185 °F (85 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
Cautionary Notes: Fastener Torque & Orientation are Critical
Ingress Protection Rating: IP50
Steering Column Shaft Diameter: Ø 24.90 mm
Connector Orientation: Straight
CAN Baud Rate: 250 Kilobaud
Overvoltage: 24 Volts
Current Maximum: 150 mA

Bendix Steering Angle Sensor

When you need a premium-quality replacement steering angle sensor for your ABS controller, then choose none other than the Bendix steering angle sensor. Bendix engineers this service new product using the latest technology to ensure the highest quality and reliability.

Features & Benefits

  • Delivers great quality at a budget-friendly price
  • Made of tough, durable material to withstand harsh operating conditions
  • Engineered to last longer than the competition
  • Easy to install since it’s made to meet OE specifications
Product Type Steer Angle Sensor

Product Description

Steering Angle Sensor

Courtesy of Bendix – All Rights Reserved

Product Attributes

Gross Weight 0.065 KG
Net Weight 0.065 KG
Length 103 MM
Width 72 MM
Height 22 MM

A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
