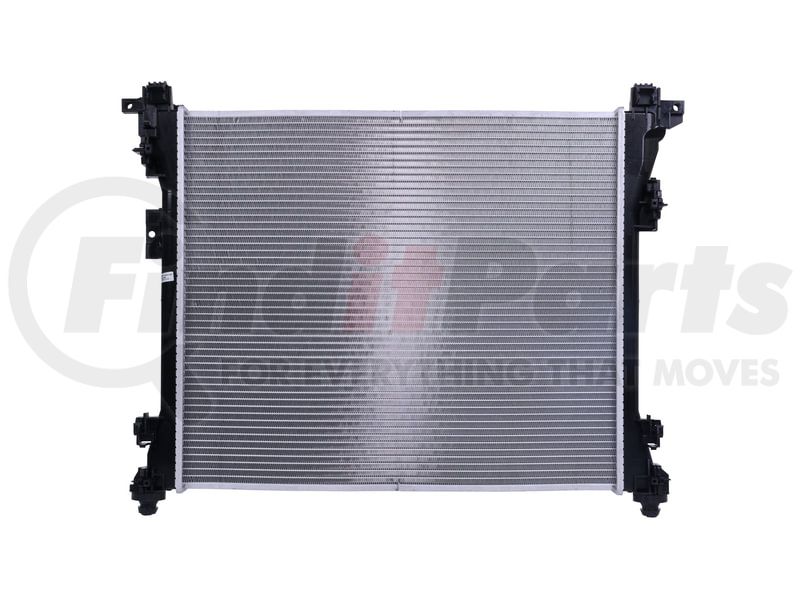

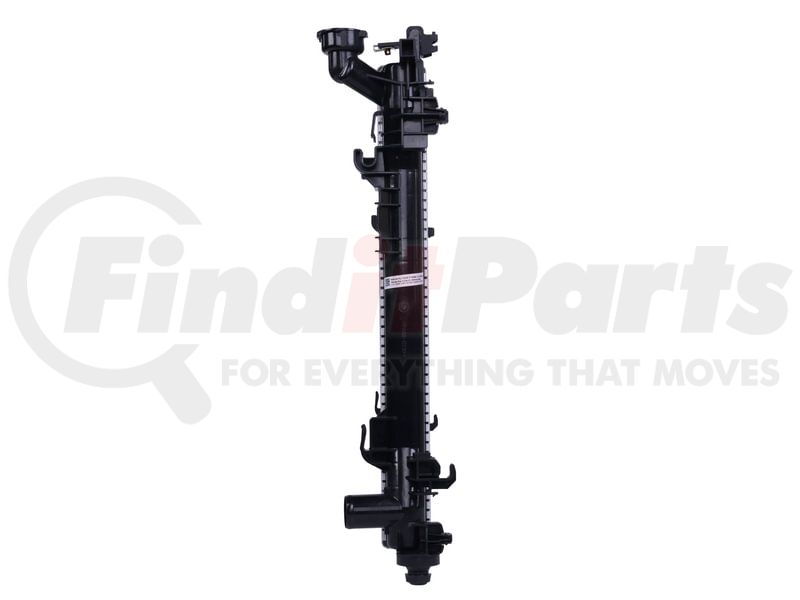

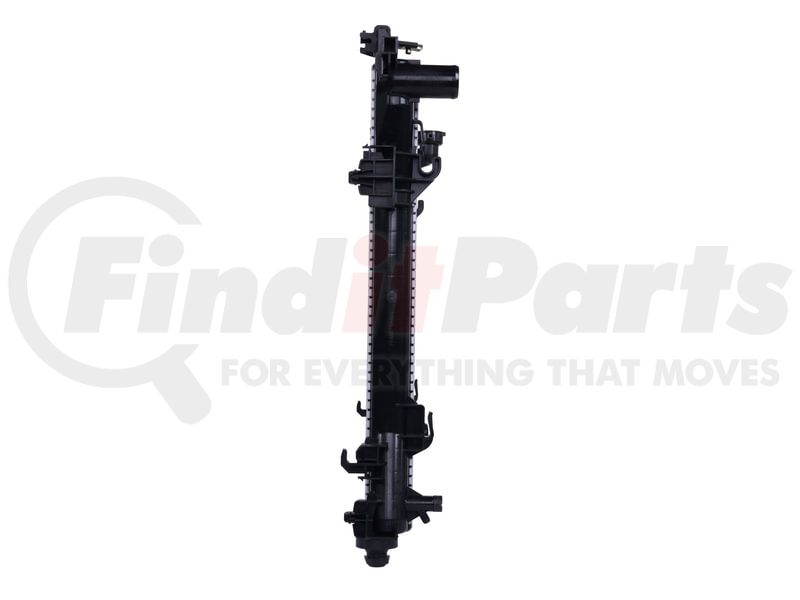

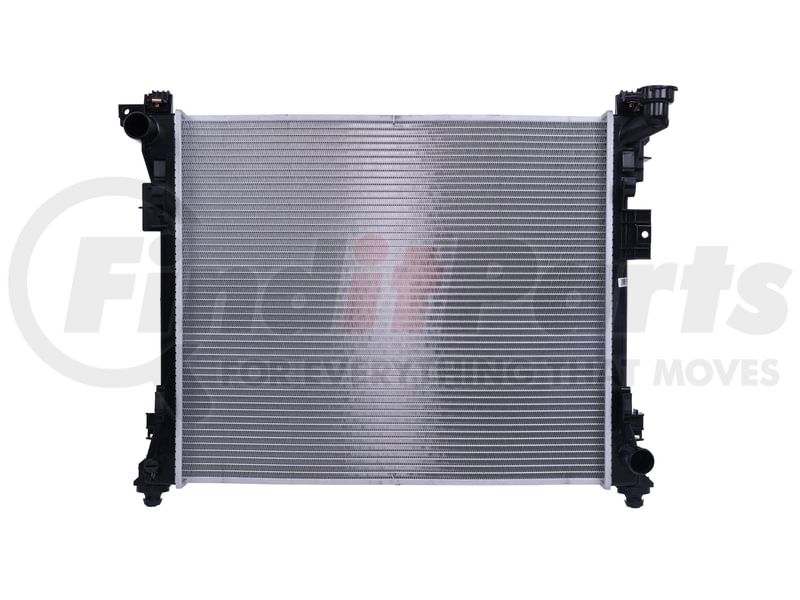

Name: Reach Cooling 41-13062 Radiator
SKU: 4113062
Availability: OutOfStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Chrysler:2008-2016 Town & Country/2008 Voyager; Dodge:2008-2020 Grand Caravan; Ram:2012-2015 C/V; Volkswagen:2009-2014 Routan

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

Product Attributes

Outlet Header Length	21.5 IN
Outlet Location	Lower Right
Radiator Cap Included	No
Core Thickness	1 IN
Inlet Header Width	54.2 MM
Inlet Diameter	38 MM
Outlet Diameter	1 1/2 IN
Down Flow Or Cross Flow Type	Cross Flow
Core Height	24 3/16 IN
Outlet Header Width	52.4 MM
Transmission Oil Cooler Included	No
Core Width	518 MM
Tank Material	Plastic PA66-GF30
Inlet Header Length	21 1/2 IN
Inlet Location	Upper Left
Core Row Quantity	1
Engine Oil Cooler Included	No
Mounting Type	Top Cradle, Bottom Pin
Core Material	Aluminum
Inlet Header Length	546.1 MM
Outlet Header Width	2 1/16 IN
Outlet Diameter	38.1 MM
Outlet Header Width	52.374 mm
Core Height	614.4 MM
Core Thickness	26 MM
Core Width	20.375 IN
Inlet Header Length	546.1 mm
Inlet Header Width	52.374 mm
Outlet Diameter	38.1 MM
Core Thickness	25.4 MM
Core Width	517.525 MM
Outlet Header Length	546.1 mm
Outlet Header Length	548.2 MM
Core Height	614.349 MM
Filler Neck	Yes
Inlet Header Width	2.062 IN
Inlet Diameter	38.1 mm
Inlet Diameter	1.5 IN

Additional Information

Country of Origin (Primary)	CN
UPC	06949521704858
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 41-13062 Cross Reference

We have 1 alternatives for the 41-13062 by REACH COOLING:

DENSO 221-9099

Fits Vehicles

Dodge Atos (2012)
Ram C/V (2012-2015)
Chrysler Voyager (2008)
Volkswagen Routan (2009-2014)
Dodge Grand Caravan (2008-2020)
Chrysler Town & Country (2008-2016)
