Name: Reach Cooling 41-1694 Radiator
SKU: 411694
Availability: OutOfStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Cadillac:99-2000 Escalade; Chevrolet:92-94 Blazer/88-99 C1500/92-95 C1500 Suburban/88-99 C2500/92-95 C2500 Suburban/89-2000 C35/88-99 C3500; GMC:88-99 C1500/92-95 C1500 Suburban/88-99 C2500/92-95 C2500 Suburban/88-99 C3500/92-94 C3500HD/88-99 K1500

Features & Benefits

Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

Product Attributes

Trans Cooler Adapter Fittings Included (True/False)	True
Engine Oil Cooler Type	Plated
Engine Oil Cooler Number of Plates	6

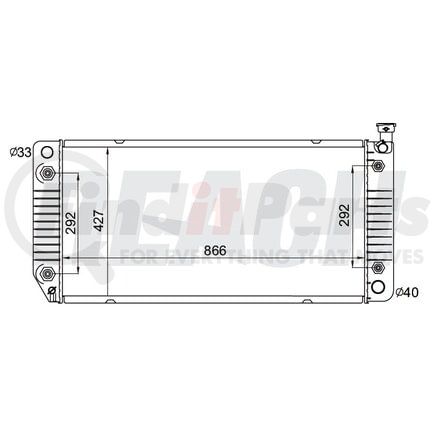

Core Thickness	2.187 IN
Inlet Header Length	18.75 IN
Outlet Header Width	3.25 IN
Transmission Oil Cooler Distance between Fittings	292.1 MM
Core Row Quantity	2
Down Flow Or Cross Flow Type	Cross Flow
Core Width	426.7 MM
Tank Material	Plastic
Engine Oil Cooler Fitting Type	Threaded
Inlet Header Width	82.6 MM
Engine Oil Cooler Fittings Distance Apart	11 1/2 IN
Core Height	866 MM
Inlet Diameter	33 MM
Outlet Diameter	1 9/16 IN
Outlet Header Length	18 3/4 IN
Transmission Oil Cooler Included	Yes
Transmission Oil Cooler Type	Plated
Inlet Location	Upper Left
Core Material	Aluminum
Transmission Oil Cooler Fitting Type	Threaded
Engine Oil Cooler Included	Yes
Outlet Location	Lower Right
Radiator Cap Included	No
Transmission Oil Cooler Plate Quantity	7
Fitting Connection Type	Threaded
Core Thickness	56 MM
Outlet Diameter	39.7 MM
Engine Oil Cooler Fittings Distance Apart	292.1 MM
Transmission Oil Cooler Distance between Fittings	292.1 MM
Inlet Header Width	3 1/4 IN
Outlet Diameter	39.674 MM
Threaded Size-1	1/2-20UNF-2A*5/8-18UNF-2B
Core Width	16 4/5 IN
Core Thickness	55.549 MM
Core Width	426.72 MM
Inlet Header Width	82.55 mm
Inlet Header Length	476.25 MM
Core Height	866.775 MM
Inlet Header Length	476.25 mm
Outlet Header Length	476.25 mm
Outlet Header Width	82.55 MM
Transmission Oil Cooler Distance between Fittings	11 1/2 IN
Inlet Diameter	1.312 IN
Inlet Diameter	33.324 mm
Threaded Size-2	1/2-20UNF-2A*5/8-18UNF-2B
Core Height	34.125 IN
Engine Oil Cooler Fittings Distance Apart	292.1 MM
Outlet Header Width	82.55 mm
Outlet Header Length	476.3 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521706890
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

Fits Vehicles

Chevrolet Suburban (1990-1991)
GMC C3500HD (1992-1995)
Chevrolet C3500HD (1992-1995)
Chevrolet Silverado (1995-1999)
Chevrolet C35 (1989-2000)
GMC Yukon (1992-1993)
GMC K3500 (1988-1999)
GMC K2500 Suburban (1992-1995)
GMC K2500 (1988-2000)
GMC K1500 Suburban (1992-1997)
GMC K1500 (1988-1999)
GMC C3500 (1988-2000)
GMC C2500 Suburban (1992-1997)
GMC C2500 (1988-2000)
GMC C1500 Suburban (1992-1999)
GMC C1500 (1988-1999)
Chevrolet V30 (1988)
Chevrolet Tahoe (1995-2000)
Chevrolet Suburban 1500 (2000)
Chevrolet R30 (1988)
Chevrolet R20 (1988)
Chevrolet K3500 (1988-1999)
Chevrolet K2500 Suburban (1992-1995)
Chevrolet K2500 (1988-1999)
Chevrolet K1500 Suburban (1992-1995)
Chevrolet K1500 (1988-1999)
Chevrolet C3500 (1988-1999)
Chevrolet C2500 Suburban (1992-1995)
Chevrolet C2500 (1988-1999)
Chevrolet C1500 Suburban (1992-1995)
Chevrolet C1500 (1988-1999)
Chevrolet Blazer (1992-1994)
Cadillac Escalade (1999-2000)
