(888) 312-8812 Login SignupRAYBESTOS 582152FZN Raybestos Element3 Coated Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 582152FZN Part Description
Manufacturer
Product Description

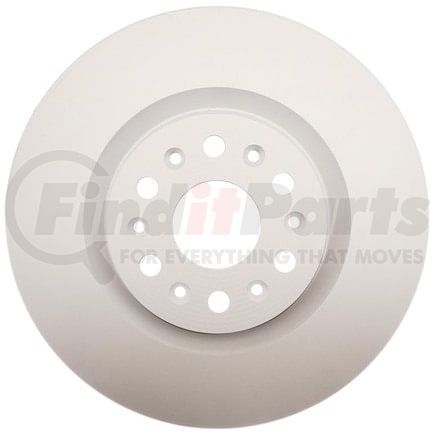

Raybestos Element3 Coated Brake Rotor
Application Summary
2023-2017 Cadillac XT5 Front, 2021-2018 Buick Enclave Front, 2023-2020 Cadillac XT6 Front
RAYBESTOS 582152FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.657 IN |
| Center Hole Diameter | 67.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.425 IN |
| Inside Diameter | 214 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.641 IN |
| Mounting Bolt Hole Diameter | 16.25 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345 MM |
| Overall Height | 2.004 IN |
| Overall Height | 50.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213318395 |
RAYBESTOS 582152FZN Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 13516729, 13526769, 13588401, 13516727, 13536149 |
| Centric Parts | 120.62174, 121.62174, 126.62174SL, 126.62174SR, 127.62174L, 127.62174R, 128.62174L, 128.62174R |
| Advance Auto Parts | YH549460P, YH586424P |
| Dura Corp | BR901698 |
| UAP | R62174 |
| Wagner Brake | BD180686E |
| Dynamic Friction Company | 600-46047 |
| DuraGo | BR901698 |
| Qualis | 41345 |
RAYBESTOS 582152FZN Fits Vehicles
- Cadillac XT6 (2020-2023)
- Buick Enclave (2018-2021)
- Cadillac XT5 (2017-2023)
RAYBESTOS 582152FZN Cross References
We have 17 alternatives for the 582152FZN by RAYBESTOS:
