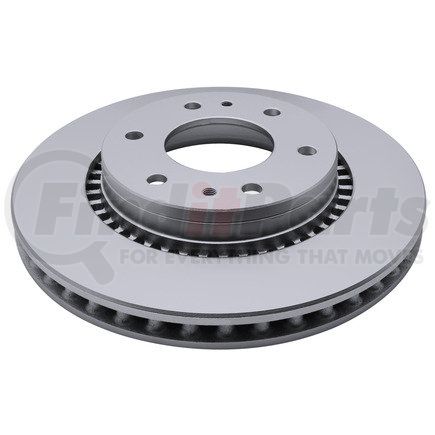

Centric 320.66063F - Centric GCX Rotor with Full Coating
$5799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 19.900 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.050 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Discard Thickness | 27.500 MM |
| Discard Thickness | 1.083 IN |
| Nominal Thickness | 29.100 MM |
| Nominal Thickness | 1.146 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 54.700 MM |
| Overall Height | 2.154 IN |
| Outside Diameter | 302.000 MM |
| Outside Diameter | 11.890 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.118 IN |
| Center Hole Diameter | 79.200 MM |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 13.200 MM |
| Stud/Lug Hole Diameter | 0.520 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393552 |
CENTRIC 320.66063F Cross Reference
We have 3 alternatives for the 320.66063F by CENTRIC:
Fits Vehicles
- Chevrolet SSR (2006)
- Isuzu Ascender (2007-2008)
- Buick Rainier (2006-2007)
- Chevrolet Trailblazer (2006-2009)
- GMC Envoy (2006-2009)
