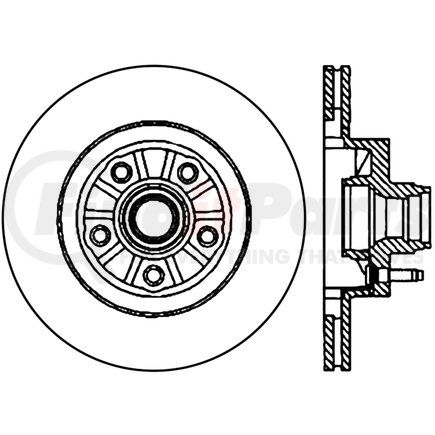

Centric 320.65083F - Centric GCX Rotor with Full Coating
$7549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| Weight [cntrc] Lbs | 24.750 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 11.250 |
| Inner Seal # [cntrc] | 417.61003 |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.91005 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Outer Bearing # [cntrc] | 410.91003 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.200 MM |
| Nominal Thickness | 1.031 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 108.000 MM |
| Overall Height | 4.252 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 305.000 MM |
| Rotor Outside Diameter | 12.008 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.400 MM |
| Center Hole Diameter | 2.772 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
CENTRIC 320.65083F Cross Reference
We have 2 alternatives for the 320.65083F by CENTRIC:
Fits Vehicles
- Ford Explorer Sport Trac (2001-2005)
- Ford Explorer Sport (2001-2003)
