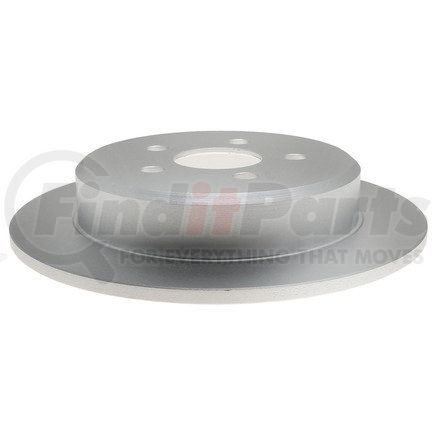

Centric 320.63040F - Centric GCX Rotor with Full Coating
$3049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 173.200 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 4.090 |
| Weight [cntrc] Lbs | 9.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] In | 6.819 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 7.250 MM |
| Discard Thickness | 0.285 IN |
| Nominal Thickness | 9.200 MM |
| Nominal Thickness | 0.362 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 52.800 MM |
| Overall Height | 2.079 IN |
| Outside Diameter | 270.000 MM |
| Outside Diameter | 10.630 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 172.000 MM |
| Nominal Drum Diameter | 6.772 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.264 IN |
| Center Hole Diameter | 57.500 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392173 |
CENTRIC 320.63040F Cross Reference
We have 3 alternatives for the 320.63040F by CENTRIC:
Fits Vehicles
- Chrysler PT Cruiser (2001-2003)
- Dodge Neon (1995-2003)
- Plymouth Neon (1995-2001)
