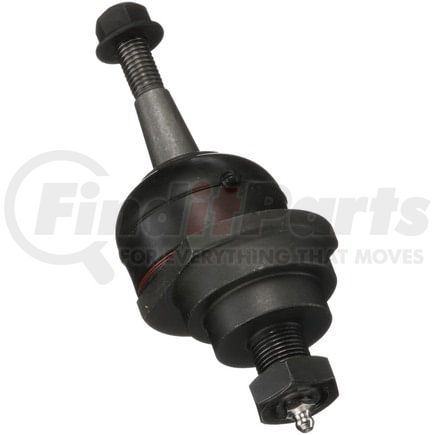

Delphi TC5845 - Ball Joint
$6699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.100 IN |
| Maximum Outside Diameter | 53.34 MM |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | No |
| Washers Included | Yes |
| Height | 4.330 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 1.3 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.7 IN |
| Stud Tapered End 2 Diameter | 17.78 MM |
| 9213 | 0.52 IN |
| Stud Tapered End 1 Diameter | 13.208 MM |
| Stud Thread Diameter | 0.47 IN |
| Height | 109.98 MM |
| Stud Thread Length | 33.02 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604316665 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Cadillac Escalade ESV (2003-2006)
- GMC Yukon XL 1500 (2000-2006)
- Cadillac Escalade EXT (2002-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 1500 (1999-2006)
- GMC Savana 2500 (2003-2019)
- GMC Savana 1500 (2003-2014)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (1999-2006)
- Chevrolet Silverado 1500 (1999-2006)
- Chevrolet Express 2500 (2003-2019)
- Chevrolet Express 1500 (2003-2014)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Escalade (2002-2006)
