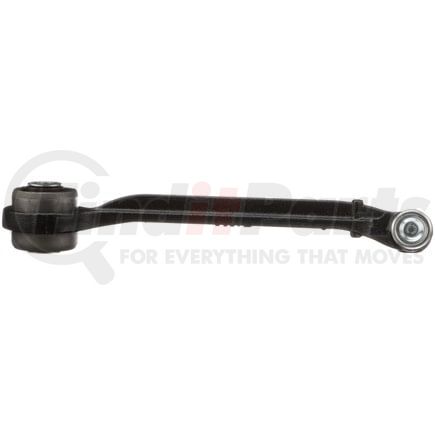

Delphi TC5737 - Control Arm and Ball Joint Assembly
$6099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.031 IN |
| Control Arm Maximum Width | 77.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 69.00 MM |
| Control Arm Maximum Length | 16.012 IN |
| Control Arm Maximum Length | 406.70 MM |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.717 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604312032 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Chrysler 4670 508AD
- Chrysler 4670 508AE
- Chrysler 4670 508AF
- Chrysler 4670508AG
- Chrysler 5168 652AA
- Chrysler 5168 652AB
- Chrysler 5168 652AC
- Chrysler 5168652AD
- Chrysler 5290 828AD
- Chrysler 68290900AC
- MAS Industries CB81474
- MAS Industries CB81474PR
- Dorman 522-802
- MOOG Chassis Products CK620257
- MOOG Chassis Products CK622224
- 4670508AA
- GS251124
- CMS251124
Fits Vehicles
- Chrysler 300 (2011-2022)
- Dodge Charger (2011-2021)
- Dodge Challenger (2011-2021)
