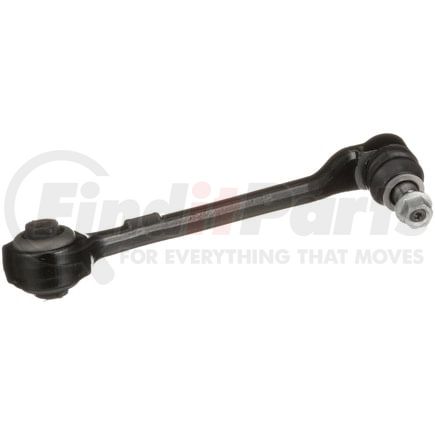

(888) 312-8812 Login SignupDELPHI TC2952 Control Arm and Ball Joint Assembly
Tap to view 14 more
$8049
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC2952 Part Description
DELPHI TC2952 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.126 IN |
| Control Arm Maximum Width | 54.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 74.00 MM |
| Control Arm Maximum Length | 13.898 IN |
| Control Arm Maximum Length | 353.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.913 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604310168 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2952 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7749 |
| MOOG Chassis Products | DS1458, RK620133, 102-7749 |
| Mevotech | MS101245 |
| BMW | 3112 6787 670 |
| Chrysler | 52039263 |
| MAS Industries | CB14464 |
| Dorman | 522-888 |
| TRW | JTC2203 |
| N/A | RK623203, CMS101251, CB14464PR |
DELPHI TC2952 Fits Vehicles
- BMW X4 (2015-2018)
- BMW X3 (2009-2017)
