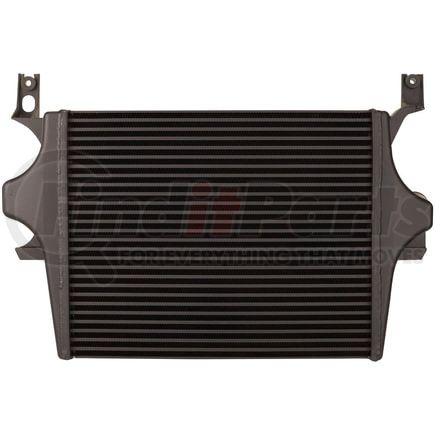

Name: Reach Cooling 61-1388 Charge Air Cooler
SKU: 611388
Price: 737.99 USD
Availability: InStock

REACH COOLING part description

Product Description

Charge Air Cooler

Application Summary

Ford:2003-2005 Excursion/2003-2007 F-250 Super Duty/ F-350 Super Duty/ F-450 Super Duty/ F-550 Super Duty

Features & Benefits

Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.

Product Attributes

Type	Harmonica-shaped tube
Outlet Outside Diameter	3 IN
Core Thickness	58.7 MM
Inlet Outside Diameter	82.6 MM
Mounting Hardware Included	No
Core Height	25.812 IN
Core Length	541.3 MM
Core Material	Aluminum
Inlet Tank Material	Aluminum
Core Height	655.6 MM
Core Length	21.312 IN
Core Thickness	2 5/16 IN
Outlet Outside Diameter	76.2 MM
Inlet Outside Diameter	3.25 IN

Additional Information

Warranty Time	12
Harmonized Tariff Code (HTS)	8708998180
Country of Origin (Primary)	TH
Harmonized Tariff Code (Schedule B)	8708998175
Warranty Special UOM	TX
Warranty Time UOM	MO
UPC	06941099924645

Part Interchanges

REACH COOLING 61-1388 Cross Reference

We have 47 alternatives for the 61-1388 by REACH COOLING:

Fits Vehicles

Ford F-550 Super Duty (2003-2007)
Ford F-450 Super Duty (2003-2007)
Ford F-350 Super Duty (2003-2007)
Ford F-250 Super Duty (2003-2007)
Ford Excursion (2003-2005)
