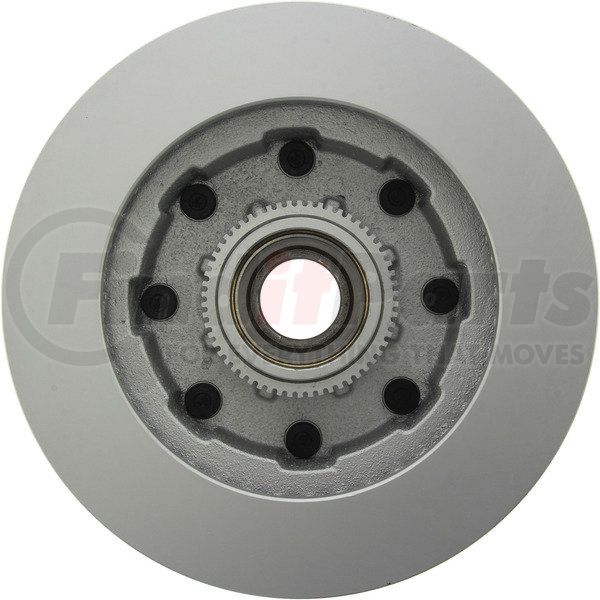

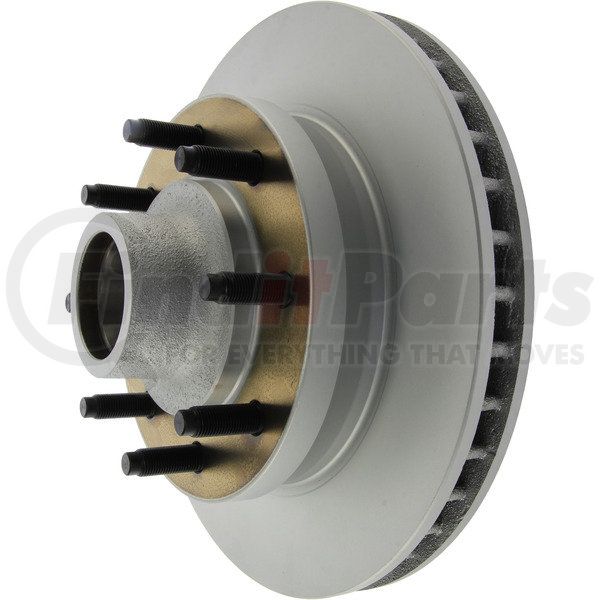

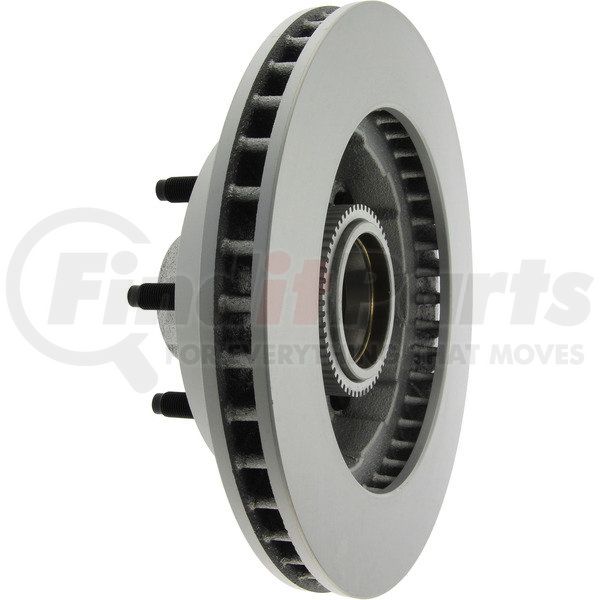

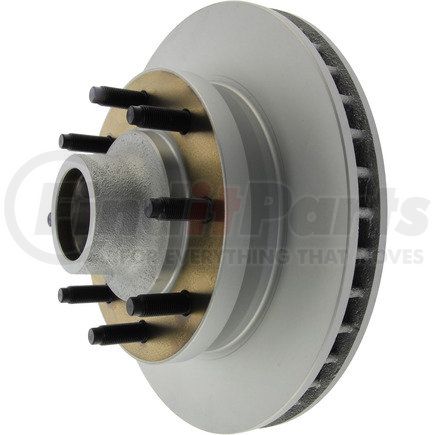

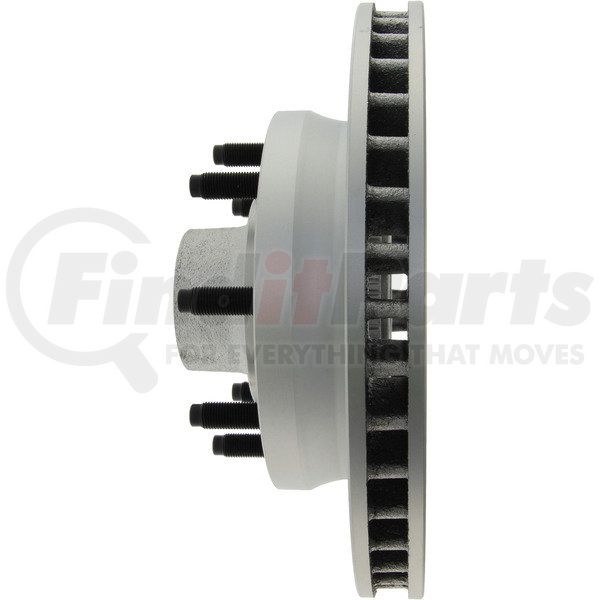

Centric 320.67030F - Centric GCX Rotor with Full Coating
$12649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Inner Seal # [cntrc] | 417.66008 |
| Inner Bearing # [cntrc] | 410.91035 |
| Outer Bearing # [cntrc] | 415.68002 |
| Weight [cntrc] Kgs | 16.360 |
| Weight [cntrc] Lbs | 36.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 30.510 MM |
| Discard Thickness | 1.201 IN |
| Nominal Thickness | 32.700 MM |
| Nominal Thickness | 1.287 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 131.500 MM |
| Overall Height | 5.177 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 317.800 MM |
| Rotor Outside Diameter | 12.512 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 121.000 MM |
| Center Hole Diameter | 4.764 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393705 |
Part Interchanges
CENTRIC 320.67030F Cross Reference
We have 2 alternatives for the 320.67030F by CENTRIC:
Fits Vehicles
- Dodge Ram 2500 (1994-1999)
