Centric 320.66031F - Centric GCX Rotor with Full Coating
$12549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

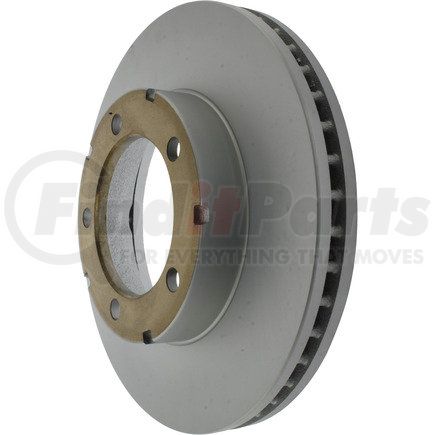

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 15.680 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 34.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 1.366 IN |
| Discard Thickness | 34.700 MM |
| Nominal Thickness | 36.500 MM |
| Nominal Thickness | 1.437 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 74.500 MM |
| Overall Height | 2.933 IN |
| Outside Diameter | 351.800 MM |
| Outside Diameter | 13.850 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 127.000 MM |
| Center Hole Diameter | 5.000 IN |
| Mounting Bolt Hole Circle Diameter | 161.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.339 IN |
| Mounting Bolt Hole Diameter | 16.700 MM |
| Mounting Bolt Hole Diameter | 0.657 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393422 |
Part Interchanges
CENTRIC 320.66031F Cross Reference
We have 2 alternatives for the 320.66031F by CENTRIC:
Fits Vehicles
- GMC C3500HD (1994-2002)
- Chevrolet C3500HD (1994-2002)
- Chevrolet P30 (1997-1999)
- Workhorse W42 (2004-2005)
- Workhorse P30 (2000-2005)
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- GMC P3500 (1997-1999)
