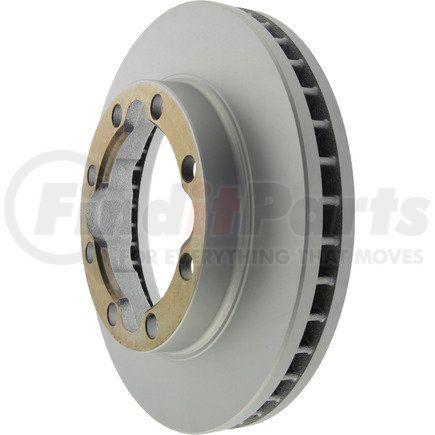

Centric 320.66026F - Centric GCX Rotor with Full Coating
$7099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 24.500 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 11.140 |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 39.100 MM |
| Nominal Thickness | 1.539 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 70.000 MM |
| Overall Height | 2.756 IN |
| Outside Diameter | 317.300 MM |
| Outside Diameter | 12.492 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 137.400 MM |
| Center Hole Diameter | 5.409 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Diameter | 16.400 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393408 |
Part Interchanges
CENTRIC 320.66026F Cross Reference
We have 3 alternatives for the 320.66026F by CENTRIC:
Fits Vehicles
- Chevrolet K3500 (1992-2000)
- Dodge Ram 4000 (1998-1999)
- GMC K3500 (1992-1996)
- Dodge Ram 3500 (1994-1999)
- Dodge Ram 2500 (1994-1999)
