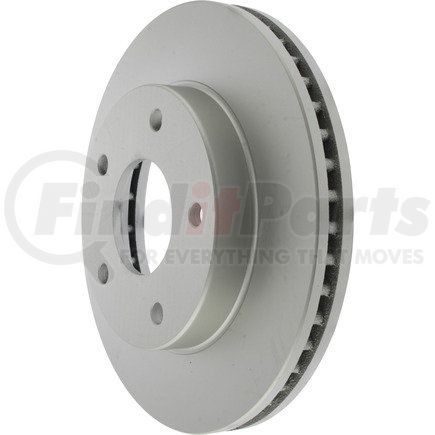

Centric 320.66006F - Centric GCX Rotor with Full Coating
$4649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 6.450 |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 14.200 |
| Discard Thickness | 24.300 MM |
| Discard Thickness | 0.957 IN |
| Nominal Thickness | 26.300 MM |
| Nominal Thickness | 1.035 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 52.000 MM |
| Overall Height | 2.047 IN |
| Outside Diameter | 266.700 MM |
| Outside Diameter | 10.500 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.700 MM |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.300 MM |
| Stud/Lug Hole Diameter | 0.524 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393330 |
Part Interchanges
CENTRIC 320.66006F Cross Reference
We have 2 alternatives for the 320.66006F by CENTRIC:
Fits Vehicles
- Chevrolet S10 (1983-1997)
- Chevrolet Blazer (1995-1997)
- Chevrolet S10 Blazer (1983-1994)
- Oldsmobile Toronado (1979-1985)
- Oldsmobile Bravada (1991-1994, 1996)
- Cadillac Seville (1980-1985)
- Cadillac Eldorado (1979-1985)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC Sonoma (1991-1997)
- GMC S15 (1983-1990)
- GMC Jimmy (1992-1997)
- Buick Riviera (1979-1985)
- GMC S15 Jimmy (1983-1991)
