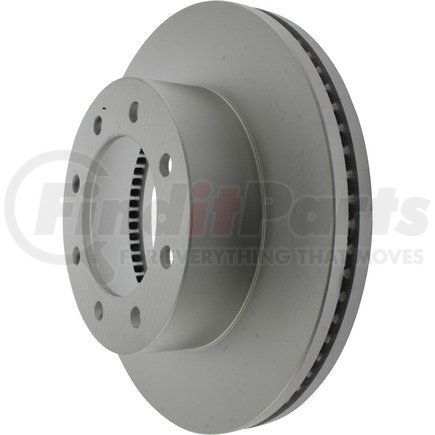

Centric 320.65138F - Centric GCX Rotor with Full Coating
$14949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| OEM Vane Count [cntrc] | 67 |
| Hat Id [cntrc] In | 8.209 |
| Weight [cntrc] Lbs | 40.450 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Hat Id [cntrc] Mm | 208.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 18.360 |
| Discard Thickness | 36.400 MM |
| Discard Thickness | 1.433 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 100.100 MM |
| Overall Height | 3.941 IN |
| Outside Diameter | 363.000 MM |
| Outside Diameter | 14.291 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 5.083 IN |
| Center Hole Diameter | 129.100 MM |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.100 MM |
| Stud/Lug Hole Diameter | 0.634 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393217 |
Part Interchanges
CENTRIC 320.65138F Cross Reference
We have 3 alternatives for the 320.65138F by CENTRIC:
Fits Vehicles
- Ford F-450 Super Duty (2013-2016)
- Ford F-350 Super Duty (2012-2022)
- Ford F-250 Super Duty (2012-2022)
