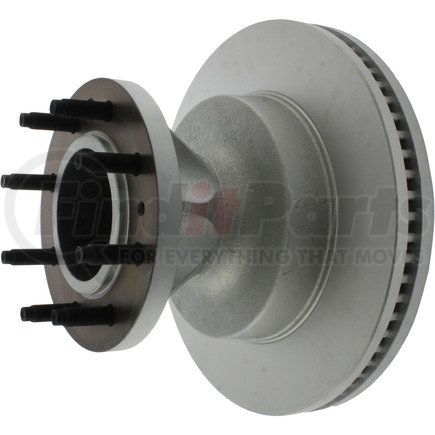

Centric 320.65126F - Centric GCX Rotor with Full Coating
$24799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Notes [cntrc] | 1 Hole with Roll Pin |
| Inner Seal # [cntrc] | 417.65025 |
| Inner Bearing # [cntrc] | 415.68004 |
| Inner Race # [cntrc] | 416.68003 |
| Outer Bearing # [cntrc] | 415.68002 |
| Outer Race # [cntrc] | 416.68001 |
| Weight [cntrc] Kgs | 28.270 |
| Weight [cntrc] Lbs | 62.200 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 38.400 MM |
| Discard Thickness | 1.512 IN |
| Nominal Thickness | 40.000 MM |
| Nominal Thickness | 1.575 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 204.000 MM |
| Overall Height | 8.031 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 345.000 MM |
| Rotor Outside Diameter | 13.583 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393149 |
Part Interchanges
CENTRIC 320.65126F Cross Reference
We have 3 alternatives for the 320.65126F by CENTRIC:
Fits Vehicles
- Ford E-450 Super Duty (2008-2019, 2021-2023)
- Ford E-350 Super Duty (2008-2019, 2021-2023)
