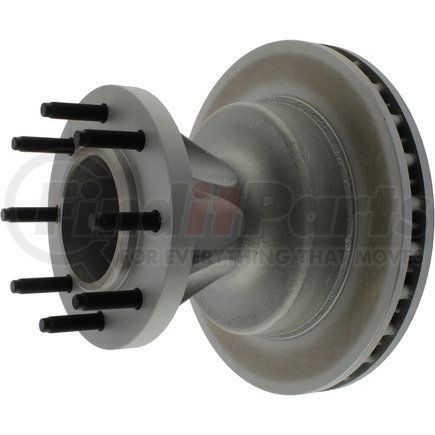

Centric 320.65109 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 56.100 |
| Outer Bearing # [cntrc] | 415.68002 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Pillar |
| Inner Race # [cntrc] | 416.68003 |
| Product Grade [cntrc] | Premium |
| Inner Bearing # [cntrc] | 415.68004 |
| Inner Seal # [cntrc] | 417.65003 |
| Outer Race # [cntrc] | 416.68001 |
| Weight [cntrc] Kgs | 25.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 36.000 MM |
| Discard Thickness | 1.417 IN |
| Nominal Thickness | 37.900 MM |
| Nominal Thickness | 1.492 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 229.900 MM |
| Overall Height | 9.051 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 330.000 MM |
| Rotor Outside Diameter | 12.992 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 125.000 MM |
| Center Hole Diameter | 4.921 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590450668 |
