Centric 320.65105F - Centric GCX Rotor with Full Coating
$11699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

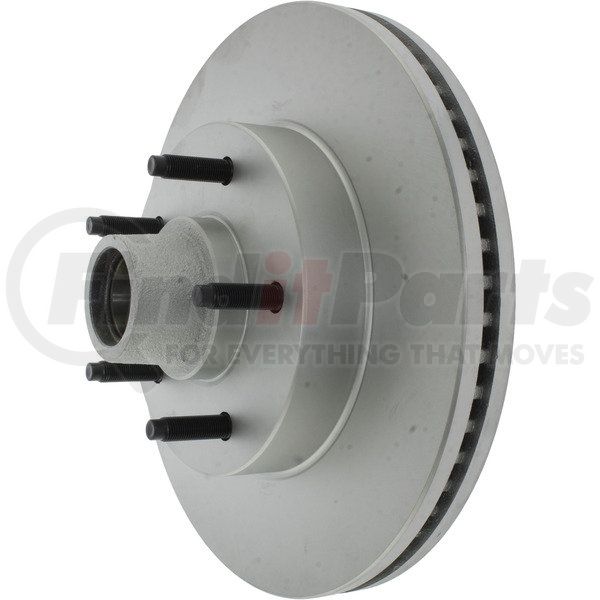

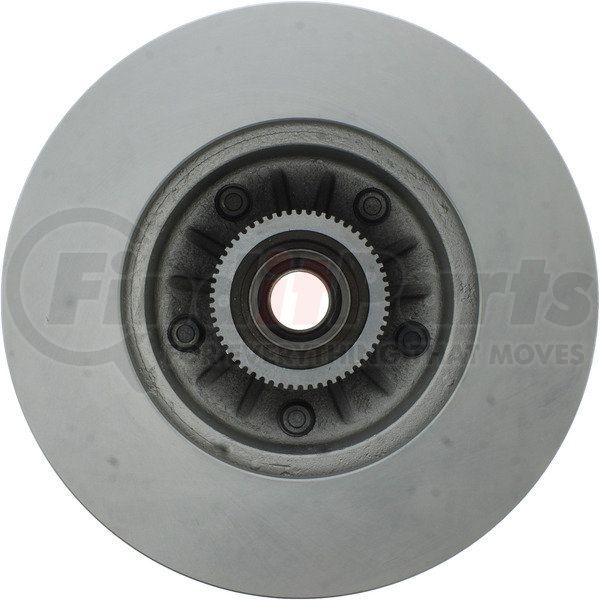

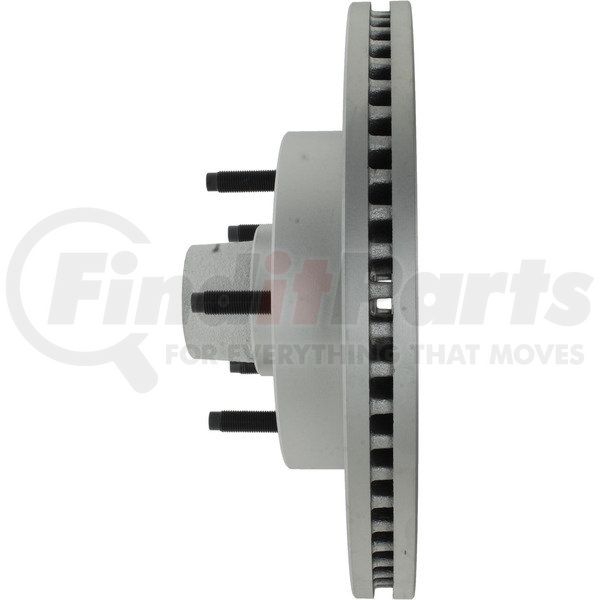

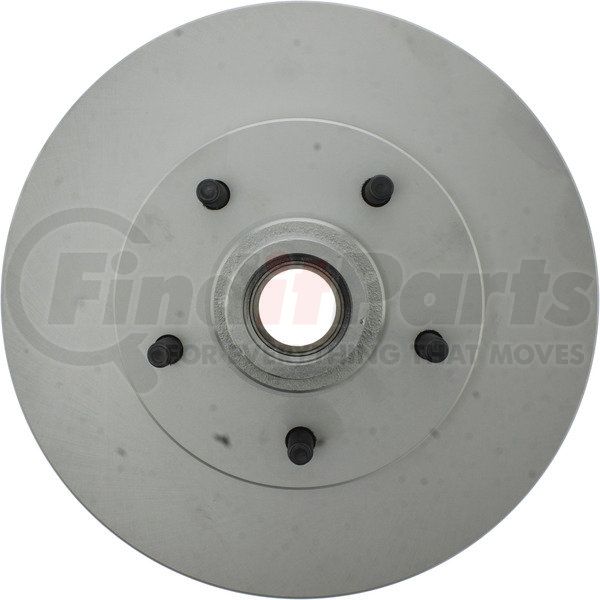

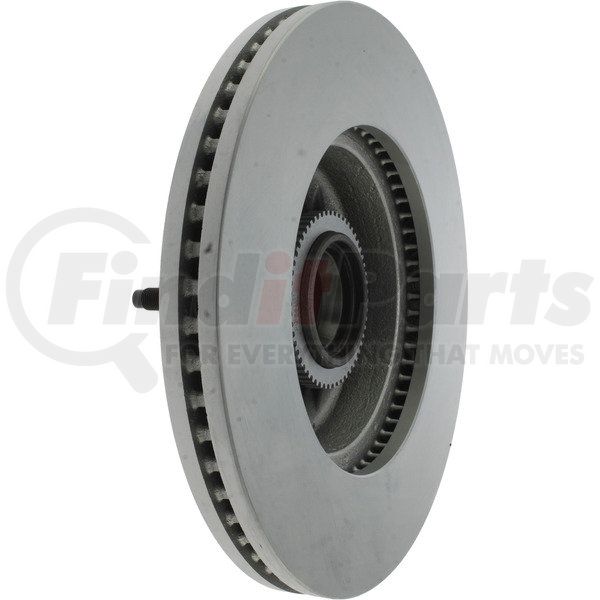

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 16.360 |
| Inner Seal # [cntrc] | 417.65000 |
| Outer Bearing # [cntrc] | 410.91012 |
| Weight [cntrc] Lbs | 36.000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Inner Bearing # [cntrc] | 410.91013 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 29.200 MM |
| Discard Thickness | 1.150 IN |
| Nominal Thickness | 31.600 MM |
| Nominal Thickness | 1.244 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 124.800 MM |
| Overall Height | 4.913 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 326.000 MM |
| Rotor Outside Diameter | 12.835 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 86.800 MM |
| Center Hole Diameter | 3.417 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392982 |
Part Interchanges
CENTRIC 320.65105F Cross Reference
We have 3 alternatives for the 320.65105F by CENTRIC:
Fits Vehicles
- Ford Econoline (2006)
- Ford E-150 Club Wagon (2004-2005)
- Ford E-150 (2004-2006)
