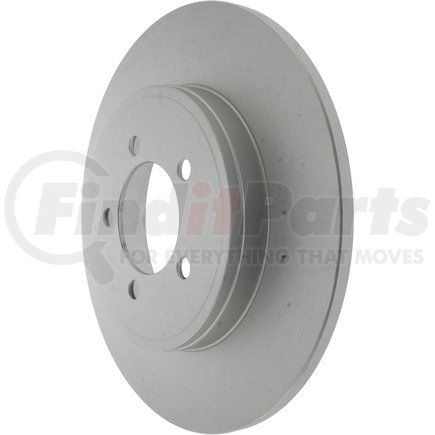

Centric 320.65094F - Centric GCX Rotor with Full Coating
$6099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] In | 7.272 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 184.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 16.000 |
| Weight [cntrc] Kgs | 7.270 |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.500 MM |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 58.400 MM |
| Overall Height | 2.299 IN |
| Outside Diameter | 322.800 MM |
| Outside Diameter | 12.709 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 183.900 MM |
| Nominal Drum Diameter | 7.240 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.228 IN |
| Center Hole Diameter | 82.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.600 MM |
| Stud/Lug Hole Diameter | 0.535 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392883 |
Part Interchanges
CENTRIC 320.65094F Cross Reference
We have 2 alternatives for the 320.65094F by CENTRIC:
Fits Vehicles
- Lincoln Aviator (2003-2005)
