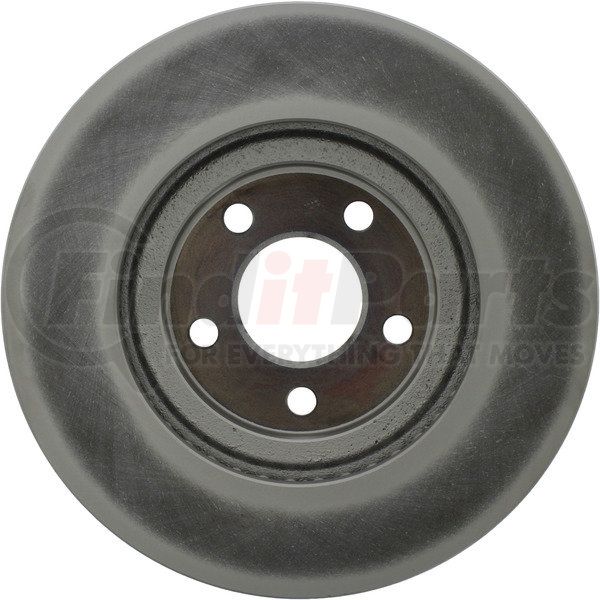

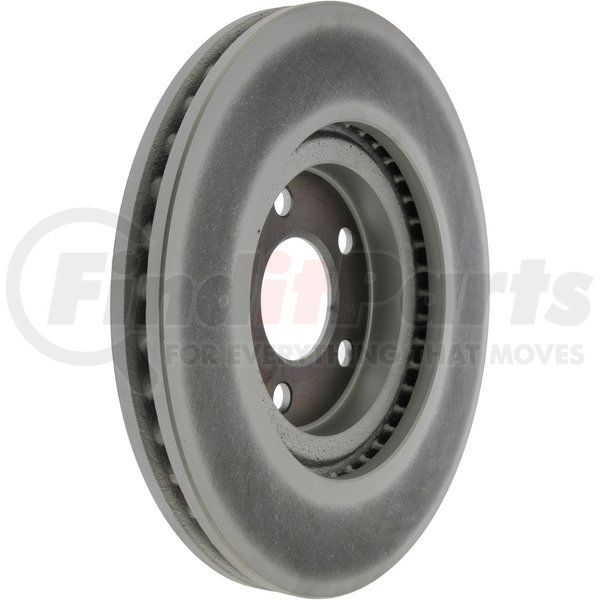

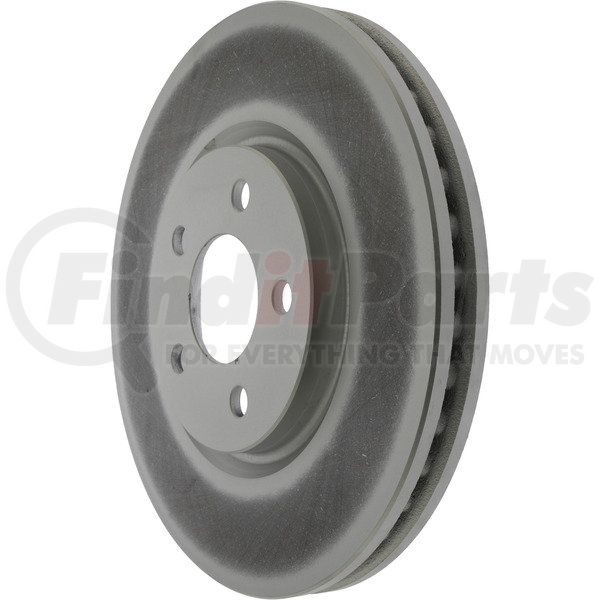

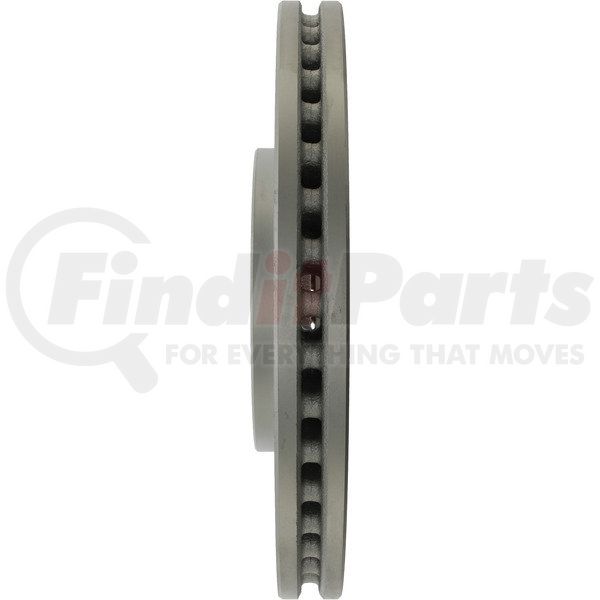

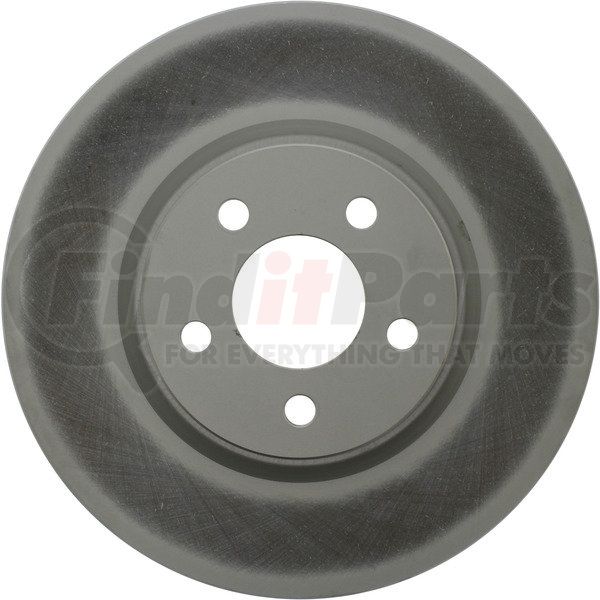

Centric 320.63053C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
$8249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 17.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.950 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 26.400 MM |
| Discard Thickness | 1.039 IN |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 39.600 MM |
| Overall Height | 1.559 IN |
| Outside Diameter | 11.024 IN |
| Outside Diameter | 280.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 61.000 MM |
| Center Hole Diameter | 2.402 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.750 MM |
| Stud/Lug Hole Diameter | 0.541 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590406610 |
Part Interchanges
CENTRIC 320.63053C Cross Reference
We have 1 alternatives for the 320.63053C by CENTRIC:
